DIRECTX 의 IA부분에서 DeviceContext를 넘겨주는부분에서 IASetPrimitiveTopology의 종류들이 상당히 많은데, 이에 대해서 궁금해서 직접 해본 결과물들을 적는다.
아마 MS사이트에서 들어가면 확인할 수 있을것이다.
- Point List
- Line List
- Line Strip
- Triangle List
- Triangle strip
위에만 보면 대충 Point Line Triangle로 되어있고, List와 Strip 두종류로 나뉘어 있다는것을 감각적으로 알 수 있다. 그런데 우리가 VS로 코드를 적을시에 이상한 부분이 보인다.
저 ADJ는 무엇을 뜻하고 어떻게 보여주는가?
MS 사이트에서는 대략 이렇게 그려질 것이다라고 설명하는것이 있으니 한번 보는게 좋다.
대략 List는 최소한의 정점으로 만들 수 있는 요소들을 하나씩만 만들고, Stripe는 연속해서 만든다는 것을 짐작해볼 수 있다. 또한, Adjacency는 인접한 점을 그냥 넘겨버리는듯한 설명이다.
자 그럼 한번 정점을 찍고 실험으로 해보자!
1. Point List
- 정점좌표
vertices[0].Position = Vector3(0.0f, 0.0f, 0.0f);
vertices[1].Position = Vector3(0.0f, 0.5f, 0.0f);
vertices[2].Position = Vector3(0.5f, 0.0f, 0.0f);
vertices[3].Position = Vector3(0.3f, 0.0f, 0.0f);
vertices[4].Position = Vector3(0.0f, 0.3f, 0.0f);
vertices[5].Position = Vector3(0.3f, 0.3f, 0.0f);
- 결과
2. Line List
- 정점좌표
vertices[0].Position = Vector3(0.0f, 0.0f, 0.0f);
vertices[1].Position = Vector3(0.3f, 0.0f, 0.0f);
vertices[2].Position = Vector3(0.0f, 0.2f, 0.0f);
vertices[3].Position = Vector3(0.3f, 0.2f, 0.0f);
vertices[4].Position = Vector3(0.0f, 0.4f, 0.0f);
vertices[5].Position = Vector3(0.3f, 0.4f, 0.0f);
- 결과
3. LineList with ADJ
정점좌표
vertices[0].Position = Vector3(0.0f, 0.0f, 0.0f);
vertices[1].Position = Vector3(0.2f, 0.0f, 0.0f);
vertices[2].Position = Vector3(0.4f, 0.0f, 0.0f);
vertices[3].Position = Vector3(0.6f, 0.0f, 0.0f);
vertices[4].Position = Vector3(0.0f, 0.4f, 0.0f);
vertices[5].Position = Vector3(0.2f, 0.4f, 0.0f);
vertices[6].Position = Vector3(0.4f, 0.4f, 0.0f);
vertices[7].Position = Vector3(0.6f, 0.4f, 0.0f);
결과

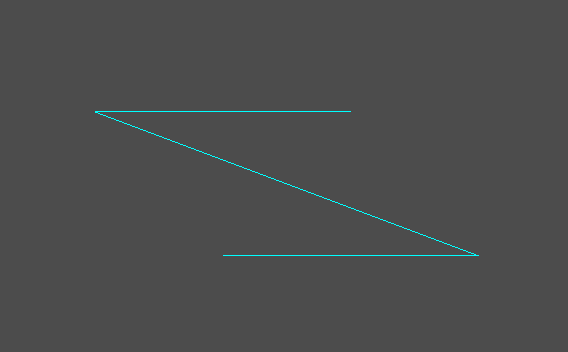

3. Line Strip and Line Strip with ADJ
정점좌표는 2번과 동일
- 결과
4. TriangleList
- 정점 좌표
vertices[0].Position = Vector3(0.0f, 0.0f, 0.0f);
vertices[1].Position = Vector3(0.1f, 0.16f, 0.0f);
vertices[2].Position = Vector3(0.2f, 0.0f, 0.0f);
vertices[3].Position = Vector3(0.3f, 0.0f, 0.0f);
vertices[4].Position = Vector3(0.4f, 0.16f, 0.0f);
vertices[5].Position = Vector3(0.5f, 0.0f, 0.0f);
- 결과
나머지는 다음에...
