Vulkan tutorial #2 Graphic pipeline overview

comwitch 2023. 6. 8. 00:54

요약



Vulkan의 Graphics pipeline

<High Level Overview (간단한 설명)>
vertex/index buffer >> Input Assembles >> VertexShader >>...>> Rasterization >> Fragment Shader >> Color Blending >> FrameBuffer(image)



저자는 각 단계를 두가지 부분으로 나

Fixed Function : programmers의 영향을 적게 미치는 공간, InputAssembles, Rasterization, Color Blending이 해당부분

Programmable : 우리가 직접 관여할 수 있는 부분 , Vertex Shader, Fragment Shaders 가 해당부분에 속함 gpu에서 사용 할 수 있는 언어인 glsl (directx의 hlsl과 같음)을 사용

glsl에서의 NDC(Normal device coordinate)  왼쪽 위 (-1, -1), 오른쪽 아래 (1, 1) 센터가 (0,0)

simple_shader.vert

#version 450

vec2 positions[3] = vec2[](
  vec2(0.0, -0.5),
  vec2(0.5, 0.5),
  vec2(-0.5, 0.5)
);

void main() {
  gl_Position = vec4(positions[gl_VertexIndex], 0.0, 1.0);
}

- gl_Position : 결과저장할 변수
- gl_VertexIndex 현재 인덱스



simple_shader.frag

#version 450

layout (location = 0) out vec4 outColor;

void main() {
	outColor = vec4(1.0, 0.0, 0.0, 1.0);

	}

outColor : 표현할 색깔



shader를 vulkan에 사용하기 위해서는 SPIR-V(Standard Portable Intermediate Representation V) 를 이용해서 출력해야함. vulkan sdk의 glslc.exe 컴파일러 사용





lve_pipeline.cpp

#include "lve_pipeline.h"

//std
#include <fstream>
#include <stdexcept>
#include <iostream>

namespace lve {
	// init
	LvePipeline::LvePipeline(const std::string& vertFilepath, const std::string& fragFilepath)
	{
		createGraphicsPipeline(vertFilepath, fragFilepath);
	}
	/*
	* readFile
	*/
	std::vector<char> LvePipeline::readFile(const std::string& filepath)
	{
		std::ifstream file{ filepath, std::ios::ate | std::ios::binary };

		if (!file.is_open())
		{
			throw std::runtime_error("failed to open file: " + filepath);
		}

		size_t fileSize = static_cast<size_t>(file.tellg());
		std::vector<char> buffer(fileSize);

		file.seekg(0);
		file.read(buffer.data(), fileSize);

		file.close();
		return buffer;
	}

	void LvePipeline::createGraphicsPipeline(const std::string& vertFilepath, const std::string& fragFilepath)
	{
		auto vertCode = readFile(vertFilepath);
		auto fragCode = readFile(fragFilepath);

		std::cout << "Vertex Shader Code Size: " << vertCode.size() << std::endl;
		std::cout << "fragCode  Shader Code Size: " << fragCode.size() << std::endl;
	}
}


}



tutorial2에서는 first_app.h에서 lve_pipeline 을 불러서 readFile을 해서 컴파일된 쉐이더의 크기를 불러오는 부분이다.

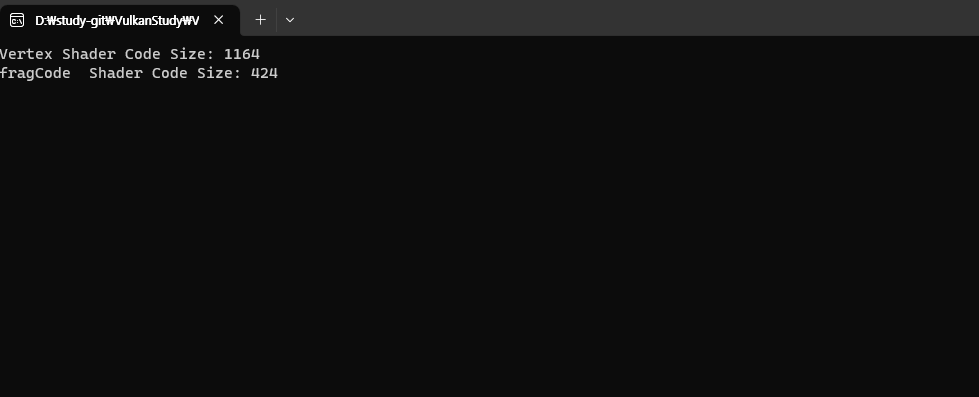

결과물이 잘 나온다면 다음을 출력한다.
